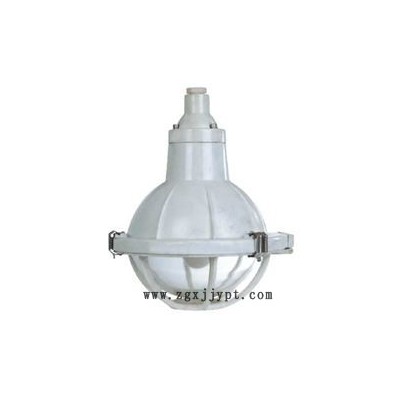

BGL200S增安型防爆防腐燈（工程塑料）
適用范圍 Application
2區危險場所。
ⅡA、ⅡB、IIC類爆炸性氣體環境。
適用于可燃性粉塵場所.
可配裝白熾燈、汞燈、金鹵燈。
Can be used in Zone 1 and Zone 2 dangerous places.
Can be used in IIA、IIB、group explosive atmosphere.
Can be used in hammable dust atmosphere.
Suitable for incandescent lamp,mercury vapor lamp,
    high-pressure sodium vapor lamp,metal halide lamp.


型號含義 Model implication


產品特點 Features
結構輕巧，造型美觀                                               With handy structure,graceful shapement.
外客采用玻璃纖維增強不飽和聚酯樹脂（SMC)壓制而成。    The shell is made of glass-fiber and unsaturated
                                                                          polyesterresin(SMC).
燈罩能快速開啟，便于維修。                                     The lampshade can be opened quickly,which is easy for maintaining.
鋼管布線。                                                          Suitable for steelpipe.
符合GB3836-2000.IEC60079標準要求.                        Suitable for GB3836-2000,IEC60079 standard request.
技術參數 Min technical parameters
        防爆標志          防護等級         防腐等級          電纜外徑(￠,mm)        進線口螺紋(G")        燈座代號            質量(kg)
                Ex-mark                Protection       corrosion-proof          Cable's outside                   Inlet's thread             Lamp  socket               Mass
                                            grade                                                  diameter
--------------------------------------------------------------------------------
           Exd Ⅱ T3*DIP           IP65                      Wf2                          10～14                                3/4                                 E27                       3.6
           A20 TA T4
配用光源 Supplied with lamps
         光源類型                   自鎮汞燈                   白熾燈                高壓汞燈                  金鹵燈
           Lamp type             Self-ballasted mercuty           Incandesent lamp         Mercurypor lamp      metal halide lamp
                                             Vapor lamp
--------------------------------------------------------------------------------
           額定電壓(V)
         Rated voltage                                               220V/50Hz
--------------------------------------------------------------------------------
           額定功率                     125                         100                     80                              70
         Rated power                   160                         150                    125                           100

外形及安裝舉例 Outline and mounting example

                                                 吊桿式(g) Pendant              吸頂式(x) Ceiling

      吊桿式(g) Pendant              壁式安裝30度(b1) Bracket30C

     吊桿式(g) Pendant            壁式安裝30度(b1) Bracket30C                 壁式安裝90度(b2) Bracket90C
